The MR PowerMAX Tri-Band is the most unique repeater kit on the market. This repeater kit is compatible with all GSM voice and all high speed 3G data networks in the UK and Europe. Our Tri-Band kits are the most versatile signal boosters available and are compatible with all GSM 900, GSM 1800 and 3G 2100 data mobile service in the UK. The unit has been tested on all mobile devices including the latest iPhone and Samsung smartphones, as well as all UK cellular networks including Vodafone, O2, EE and 3 Network. The MR PowerMAX Tri-Band Kit comes with everything you need to boost coverage in your area! This product is simple to install, comes with 100% free technical support and is shipped from the UK.
PowerMAX TRI-Band GSM 900|1800|2100
65dB gain
Coverage up to 1,000 sq m
Simple Installation
Supports 100 simultaneous users
All GSM voice and all 3G networks in the UK and Europe
15 Day Money Back Guarantee
Free Shipping
The MR PowerMAX Tri-Band kit is designed for universal mobile coverage on the go. The MR PowerMAX Tri-Band enhances signal strength to your mobile phone or broadband 3G dongle by capturing the weak signal through an external aerial antenna that provides input to a Tri-Band amplifier compatible with all GSM Voice and all data networks. Tri-Band mobile booster kits are the most versatile solutions available and boost all networks simultaneously. This low cost solution will provide a reliable phone signal for areas up to 1000 square meters depending on the antenna input signal.

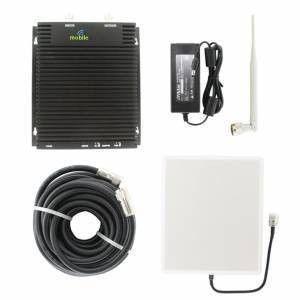

Installation of the MR PowerMAX Tri-Band repeater is simple and takes minutes. Just mount the external yagi aerial and connect to the repeater input port. At the output of the repeater connect the indoor coverage antenna then connect the power. For best performance the external aerial should be mounted in the location with the strongest signal strength. The effective coverage area of the unit depends on the input signal provided from this antenna. The MR PowerMAX Tri-Band repeater kit comes complete with:

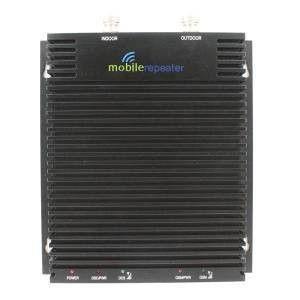

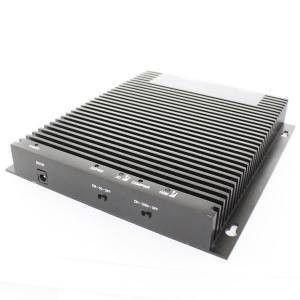

MR Tri-Band Repeater Amplifier
External Tri-Band High Gain MR Yagi aerial

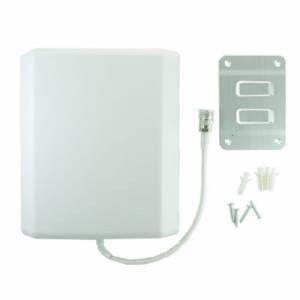

Indoor high gain tri-band panel antenna
10 m coax to connect to repeater
AC/DC power supply
Easy to follow installation manual
If you have any questions about our Tri-Band signal boosters or other Mobile Repeater products and services, please feel free to Contact Us. For technical specifications on this model please see below.
Technical Specifications
Gain ( dB) Uplink Gp≥65, Downlink Gp≥70 Pass band ripple ≤5dB Guard band rejection (BW-60dB)≤42MHz, (BW-70dB)≤45MHz I/O impedance 50Ω/N connector I/O return loss ≤-8dB Export power (Po) ≥15dBm Intermodulation Attenuation: ≤-40dBc (Po=13dBm) Transmission Delay ≤0.5μs Ambient temperature -10℃~50℃ Power supply AC110~220V + - 10% Connector Mode N/K for both in-out antenna socket Dimensions 235 x 178 x 25 mm
